Specific Gravity of Cement

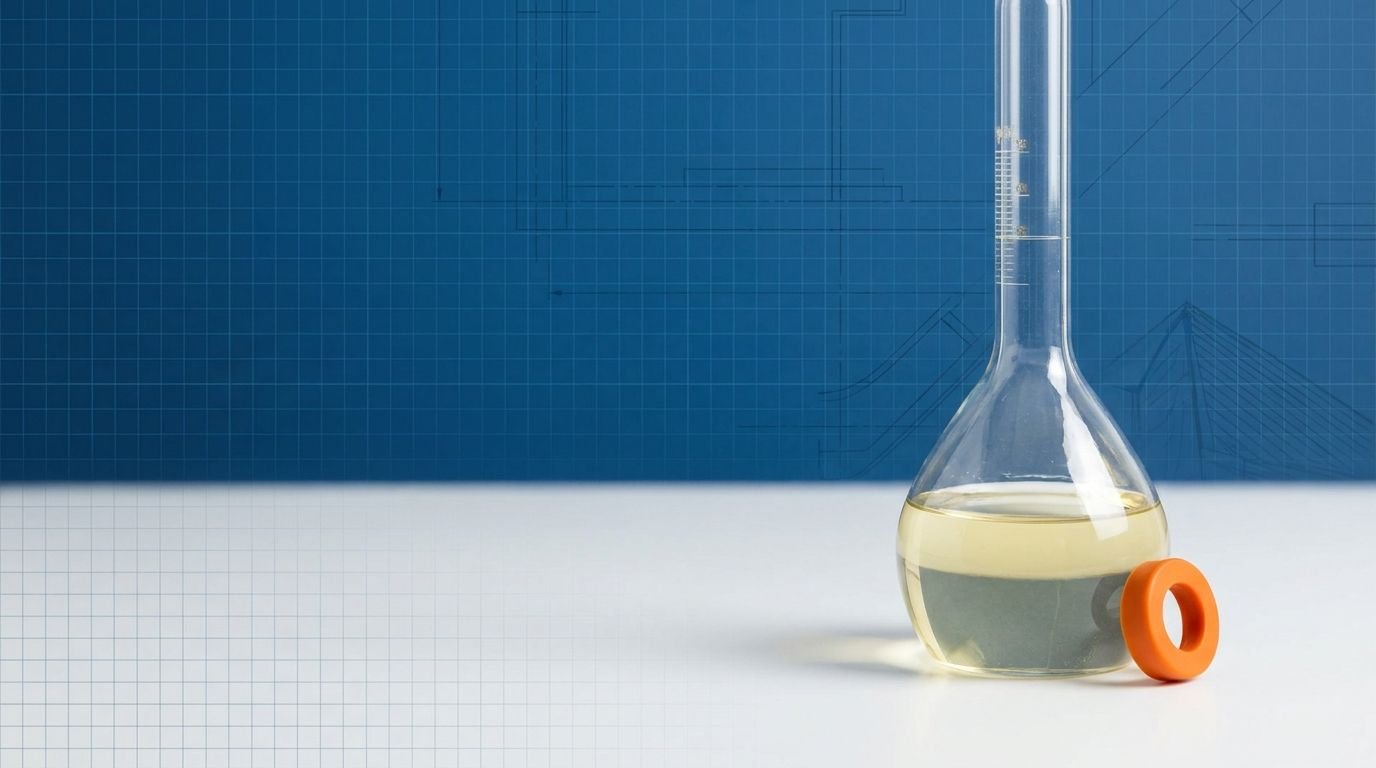

The specific gravity of cement — about 3.15 for fresh ordinary Portland cement — is the ratio of the density of the cement's solid grains to the density of water, and it's one of the quieter but genuinely essential numbers behind every concrete mix design calculation. It's measured with a Le Chatelier flask or a specific-gravity bottle, and critically, kerosene is used instead of water, for a reason that matters.

Why kerosene, specifically

Specific gravity is measured by a liquid displacement method: a known weight of cement is added to a known volume of liquid, and the rise in liquid level tells you the volume the cement occupies — from which density, and specific gravity relative to water, is calculated. The obvious first choice of liquid would be water itself, matching the definition of specific gravity directly. But water is exactly what cement reacts with — adding cement to water doesn't just displace volume, it starts hydrating, consuming water and forming new solid compounds, which corrupts the very volume measurement the test depends on. Kerosene doesn't react with cement at all, so it displaces cleanly without any chemical interference, giving an accurate, stable reading. (In principle any inert, non-reactive liquid of known density would work; kerosene is simply the standard, readily available choice.)

The test procedure

1. 1

   Fill with kerosene

   Fill the Le Chatelier flask with kerosene up to a mark on its graduated neck below the bulb, and record this initial reading.

2. 2

   Add a known weight of cement

   Add a measured weight of cement (commonly around 64 g) to the flask gradually, avoiding splashing.

3. 3

   Remove air bubbles

   Gently roll or agitate the flask to dislodge any trapped air bubbles clinging to the cement particles, which would otherwise distort the volume reading.

4. 4

   Record the new level

   Read the new kerosene level on the graduated neck once the cement has fully settled and no bubbles remain.

5. 5

   Calculate the displaced volume

   The rise in level between the two readings is the volume of kerosene displaced by the added cement.

6. 6

   Compute specific gravity

   Specific gravity = weight of cement ÷ (volume displaced × specific gravity of kerosene), correcting for kerosene's own known density relative to water.

For fresh, properly stored OPC, this procedure consistently gives a result of approximately 3.15.

What the result actually tells you

Fresh, sound OPC

3.1–3.19

Partly hydrated / stored

2.85–3.05

2.83.3

A value noticeably below the normal 3.10–3.19 range is a strong signal the cement has already begun reacting in storage before it ever reached the mixer.

The logic behind this is straightforward: when cement partially hydrates from moisture exposure during storage, the new hydration products it forms are less dense than the original unreacted clinker compounds — so a cement bag that's been sitting in a damp godown for months, quietly reacting with ambient humidity, will test as having a lower specific gravity than a fresh bag of the identical cement type. This makes the specific gravity test a genuinely useful, if indirect, way to flag cement whose quality may have degraded in storage before it's used in structural concrete.

Where the number is actually used

Specific gravity isn't tested for its own sake — it's a direct input to concrete mix design, where proportions are worked out by both mass and volume simultaneously. Knowing the specific gravity of cement (and separately, of the sand and aggregate) lets a mix designer convert between the weight of each material batched and the actual volume it occupies in the finished concrete — which is essential for calculating the yield of a mix (how many cubic metres of concrete a given batch of materials will actually produce) and for checking that proportions add up correctly. See the concrete calculator for how cement quantity translates into a working mix, and pair this test with fineness and soundness when assessing the overall quality of stored cement.

Frequently asked questions

What is the specific gravity of cement? It is approximately 3.15 for fresh, properly stored ordinary Portland cement — the ratio of the density of the solid cement grains to the density of water, measured using kerosene as the displacement liquid.

Why is kerosene used instead of water in the specific gravity test? Because water reacts chemically with cement (hydration), which would consume water and form new compounds during the test, corrupting the volume measurement. Kerosene does not react with cement, so it displaces cleanly and gives an accurate, stable reading.

What does a low specific gravity of cement indicate? A value noticeably below the normal 3.10–3.19 range suggests the cement has already absorbed moisture and begun hydrating during storage — since hydration products are less dense than unreacted clinker — meaning the cement may have partially lost its quality and reactivity before it was even used.

Which apparatus is used to find specific gravity of cement? A Le Chatelier flask (a graduated glass flask with a bulb and narrow neck) or a specific-gravity/density bottle is used, filled with kerosene as the non-reactive displacement liquid.

Where is specific gravity of cement used in practice? It's used in concrete mix design to convert between the mass and volume of cement when proportioning a mix, and to calculate the yield (volume of concrete produced) from a given batch of materials — it's a foundational input rather than a standalone quality check.

Does specific gravity vary between cement types (OPC vs PPC)? Yes, slightly. PPC, which contains fly ash (generally less dense than clinker), typically has a somewhat lower specific gravity than pure OPC — commonly in the range of about 2.9 to 3.1 depending on the exact fly-ash content — which mix designers account for when proportioning blended-cement concrete.

Is 3.15 an exact fixed value for all OPC? No — 3.15 is a commonly cited typical value, but the actual specific gravity of any given batch should be tested rather than assumed, since it varies slightly with the specific raw materials and manufacturing process used by different cement plants.
