Standard Consistency Test of Cement

Standard (or normal) consistency is the amount of water, expressed as a percentage of the cement's dry weight, needed to make a paste of one exactly-defined stiffness — and every other cement paste test that follows depends on first knowing this number. It is found using the Vicat apparatus under IS 4031 (Part 4), and it is always the first test performed in a full cement quality-testing sequence.

Why this test has to come before the others

This is easy to miss but important: setting time and soundness are both measured on a cement paste of a specific stiffness — not too wet, not too dry. If two labs tested setting time on pastes mixed to whatever water content "felt right" by eye, their results wouldn't be comparable at all, since a wetter paste naturally takes longer to stiffen regardless of the cement's inherent properties. Standard consistency solves this by defining that stiffness precisely, in terms of the one measurable quantity that produces it: the water content. Once that percentage is known for a given cement, every subsequent test uses a paste mixed to that same standard, making results genuinely comparable across cements, labs, and time.

The Vicat apparatus and how the test works

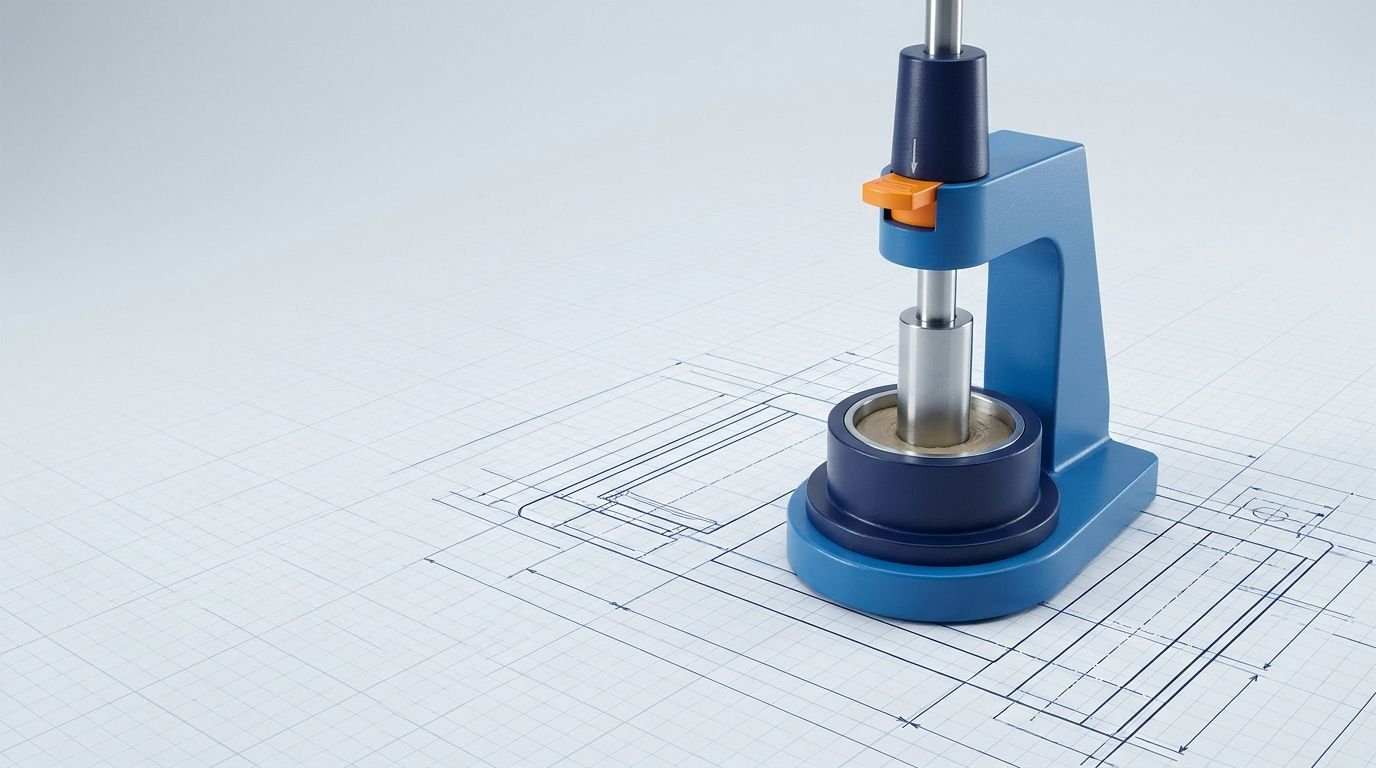

The Vicat apparatus is a simple, precise mechanical device: a vertical frame holds a movable rod that can be fitted with different attachments (a plunger for this test, needles for the setting-time tests) and released to fall freely under a fixed weight into a sample held in a standard ring mould below.

1. 1

   Weigh the cement

   Take 300 g of cement for the trial paste.

2. 2

   Mix a trial paste

   Mix with a trial percentage of water (commonly starting around 26–28% of the cement weight), gauging for a fixed, standard mixing time.

3. 3

   Fill the mould

   Fill the Vicat mould (a truncated cone, 40 mm deep) with the paste and strike it level with the top.

4. 4

   Fit the plunger

   Fit the apparatus with its 10 mm diameter plunger, positioned to just touch the paste surface, then release it to sink freely under its own weight.

5. 5

   Read the penetration

   Read how far the plunger has sunk from the top of the mould, roughly 30 seconds after release.

6. 6

   Repeat until target is met

   Repeat with a fresh paste at adjusted water content until the plunger settles to 33–35 mm from the top of the mould (i.e. 5–7 mm from the bottom).

Standard consistency = the water content (as a percentage of the cement's weight) at which the plunger settles to 33–35 mm from the top of the 40 mm mould. For most ordinary Portland cement this works out to roughly 26–33% water, though the exact figure varies with the cement's fineness and composition — finer cement generally needs slightly more water to reach the same standard consistency, which is another way fineness and consistency are physically linked.

What the number is actually used for

Once standard consistency (commonly denoted P) is determined, it directly sets the water content for the next two tests in the standard sequence:

Getting standard consistency wrong therefore doesn't just produce one bad number — it propagates directly into inaccurate setting-time and soundness results as well, since both of those tests are mixed relative to this baseline. This is why it's always determined first, carefully, before the other tests proceed.

What an unusual consistency value might indicate

A standard consistency noticeably outside the typical 26–33% range for a given cement type is worth investigating rather than simply recording. A higher-than-expected water demand can point to unusually fine grinding (more surface area to wet — see the fineness test) or, in stored cement, early hydration from moisture exposure during storage, which effectively pre-reacts some of the cement and changes its water demand before it even reaches the mixer. Cement that has been stored too long or in damp conditions is worth checking on both fineness and consistency before use in structural work.

Frequently asked questions

What is standard consistency of cement? It is the percentage of water, by weight of cement, that produces a paste of a precisely standardised stiffness — defined as the stiffness at which the Vicat apparatus's 10 mm plunger settles to 33–35 mm from the top of the standard mould.

What is the normal consistency value of cement? For most ordinary Portland cement it falls around 26–33% water by weight of cement, though the exact figure varies with the cement's fineness, composition and freshness — it must be determined by test for each specific cement, not assumed.

Why is the consistency test done first, before other cement tests? Because the setting-time and soundness tests must be run on a paste of standard stiffness to be comparable. Standard consistency establishes exactly what water content produces that stiffness, so it has to be known before those subsequent tests can be mixed correctly.

Which plunger is used in the consistency test? A 10 mm diameter plunger is fitted to the Vicat apparatus specifically for the standard consistency test — this is different from the needles (1 mm square, and a needle with an annular collar) used for the initial and final setting-time tests on the same apparatus.

What does a high consistency value indicate? A higher-than-typical water demand for standard consistency can indicate an unusually fine grinding, or in stored cement, can suggest partial hydration from moisture exposure during storage — both worth checking before using the cement in structural work.

Is the consistency test the same as the slump test? No — they measure different things on different materials. The consistency test measures the water demand of neat cement paste using the Vicat apparatus, done in a lab. The slump test measures the workability of fresh concrete (with sand and aggregate) on site, using a slump cone.

How much cement is needed for the consistency test? The standard procedure uses 300 g of cement for the trial paste, mixed with water at the trial percentage being tested — the test is typically repeated at two or three water contents before the correct standard-consistency percentage is pinpointed.
