Initial & Final Setting Time of Cement

Setting time tells you exactly how long cement paste stays workable and when it has genuinely hardened — the initial set marks the point it starts stiffening and can no longer be reworked, the final set marks the point it has hardened enough to bear light handling. Both are measured with the Vicat apparatus under IS 4031 (Part 5), and both are bound by limits precisely because either extreme — setting too fast or too slow — causes real problems on a working site.

What "setting" actually means, chemically

Setting is not the same thing as hardening or strength gain — it is specifically the loss of plasticity as the cement paste's chemical hydration reactions progress far enough that the paste stiffens into a rigid (though still weak) structure. Initial set is the earliest point this stiffening becomes measurable — beyond this point, the paste can no longer be remixed or reworked without breaking the fragile early structure that's forming. Final set is the point the paste has hardened enough that it can resist a light indenting force without leaving a mark — genuine strength gain continues for weeks after this, but the material has crossed from "workable paste" to "solid, if still weak, material."

Why both limits exist — a real, opposing pair of risks

✓If initial set comes too early (below 30 min)

• •Not enough time to batch, transport and place the concrete before it stiffens
• •Concrete placed after stiffening begins bonds poorly and traps air voids
• •Cold or construction joints form unintentionally mid-pour
• •Finishing operations (screeding, floating) become impossible before the surface hardens

✕If final set takes too long (over 600 min)

• •Formwork and site schedules are held up waiting for adequate hardening
• •Fresh concrete stays vulnerable to rain, disturbance and vibration for longer
• •Structural work sequencing slows across the whole project
• •Early-age strength gain is delayed, pushing back every downstream milestone

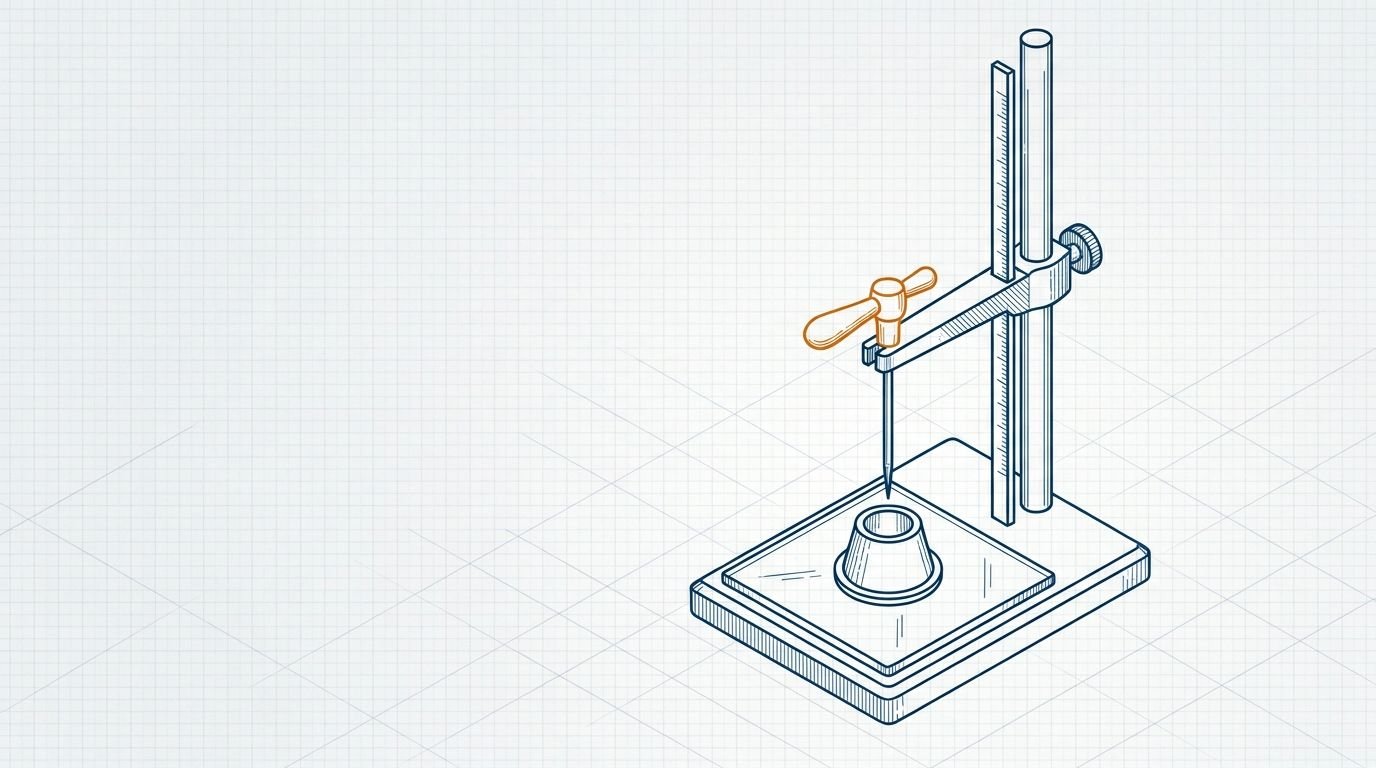

The Vicat test procedure (IS 4031 Part 5)

1. 1

   Prepare the paste

   Mix a cement paste at 0.85 × the standard consistency water content (found from the consistency test) and fill the Vicat mould.

2. 2

   Fit the initial-set needle

   Replace the Vicat plunger with the 1 mm square-section needle for the initial setting test.

3. 3

   Test at intervals

   Lower the needle onto the paste surface at regular intervals from the time water was added, releasing it to sink freely each time.

4. 4

   Record initial set

   Initial setting time is the elapsed time from adding water until the needle no longer penetrates to within 5 ± 0.5 mm of the mould base.

5. 5

   Fit the final-set attachment

   Swap to the needle with the annular (ring) attachment for the final setting test, continuing on the same or a fresh paste as specified.

6. 6

   Record final set

   Final setting time is the elapsed time until the needle makes an impression on the paste surface but the surrounding annular collar leaves no impression at all.

The IS 4031 limits for OPC

Initial setting time — not less than 30 minutes. Final setting time — not more than 600 minutes (10 hours).

These are minimums and maximums, not targets — a cement well inside both limits (say, initial set at 90 minutes and final set at 5 hours) is perfectly normal and gives a comfortable working window without being excessively slow. The limits exist purely to reject the failure extremes: cement that sets too fast to place properly, or too slow to be practical for scheduling.

What affects setting time on a real site

Setting time is a property of the cement itself as tested in the lab, but several site factors influence how that translates to actual behaviour in the field:

This is exactly why the same nominal cement can behave differently on a hot afternoon versus a cool morning, and why the lab-tested setting time is a baseline reference, not a guarantee of identical field behaviour every single pour.

Frequently asked questions

What is the initial and final setting time of cement? Initial setting time is when the cement paste begins to stiffen and irreversibly loses its plasticity — beyond this point it can't be reworked. Final setting time is when it has hardened enough to resist a light indenting force. Both are measured with the Vicat apparatus on a paste mixed to a standard water content.

What is the limit of setting time for OPC? For ordinary Portland cement, the initial setting time must be not less than 30 minutes, and the final setting time must be not more than 600 minutes (10 hours), per IS 4031 and the relevant cement standard.

Which apparatus is used to find setting time? The Vicat apparatus is used for both tests — fitted with a 1 mm square needle for the initial set, and a needle with an annular attachment for the final set — testing a paste mixed to a standard water content derived from the consistency test.

Why should initial setting time not be too short? If cement sets too quickly, there isn't enough time to mix, transport, place, compact and finish the concrete before it stiffens, which leads to poor compaction, weak bonding, trapped voids, and accidentally-formed cold joints in what should be a continuous pour.

Does temperature affect setting time? Yes, significantly. Higher ambient and mix temperatures speed up the chemical hydration reaction and shorten setting time in practice, while cooler conditions slow it — which is why setting-time laboratory tests are run under controlled temperature and humidity to give a comparable, standard reference value.

Is final setting time the same as the concrete being fully strong? No. Final set only means the paste has hardened enough to resist light indentation — genuine structural strength continues developing for weeks afterward, which is exactly why concrete still requires curing and a minimum age (commonly 28 days) before it's considered to have reached its design strength.

How does PPC's setting time compare to OPC's? PPC generally has a comparable initial setting time to OPC but often runs slightly longer overall because of its slower pozzolanic reaction, giving a marginally wider practical working window — though both must still meet the same IS 4031 initial and final setting-time limits.
